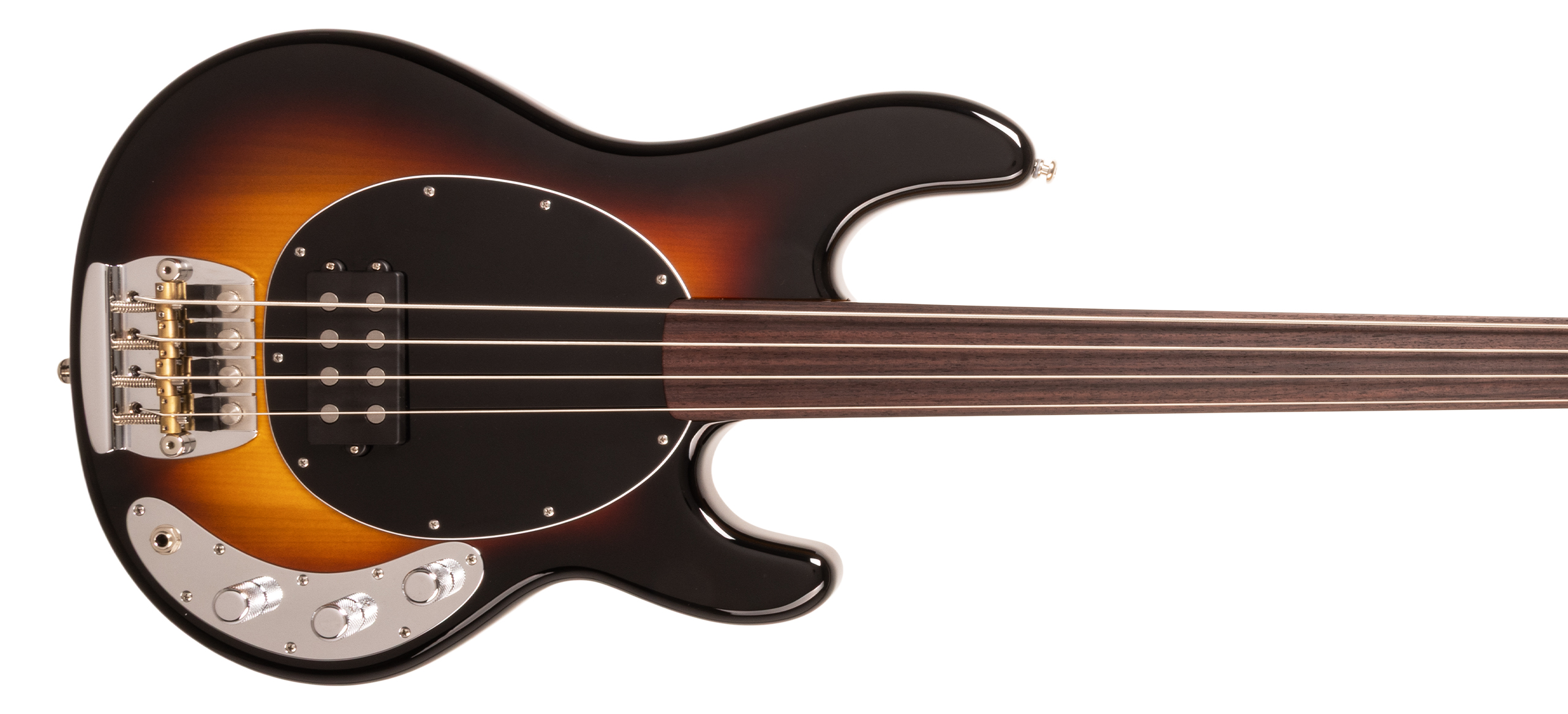

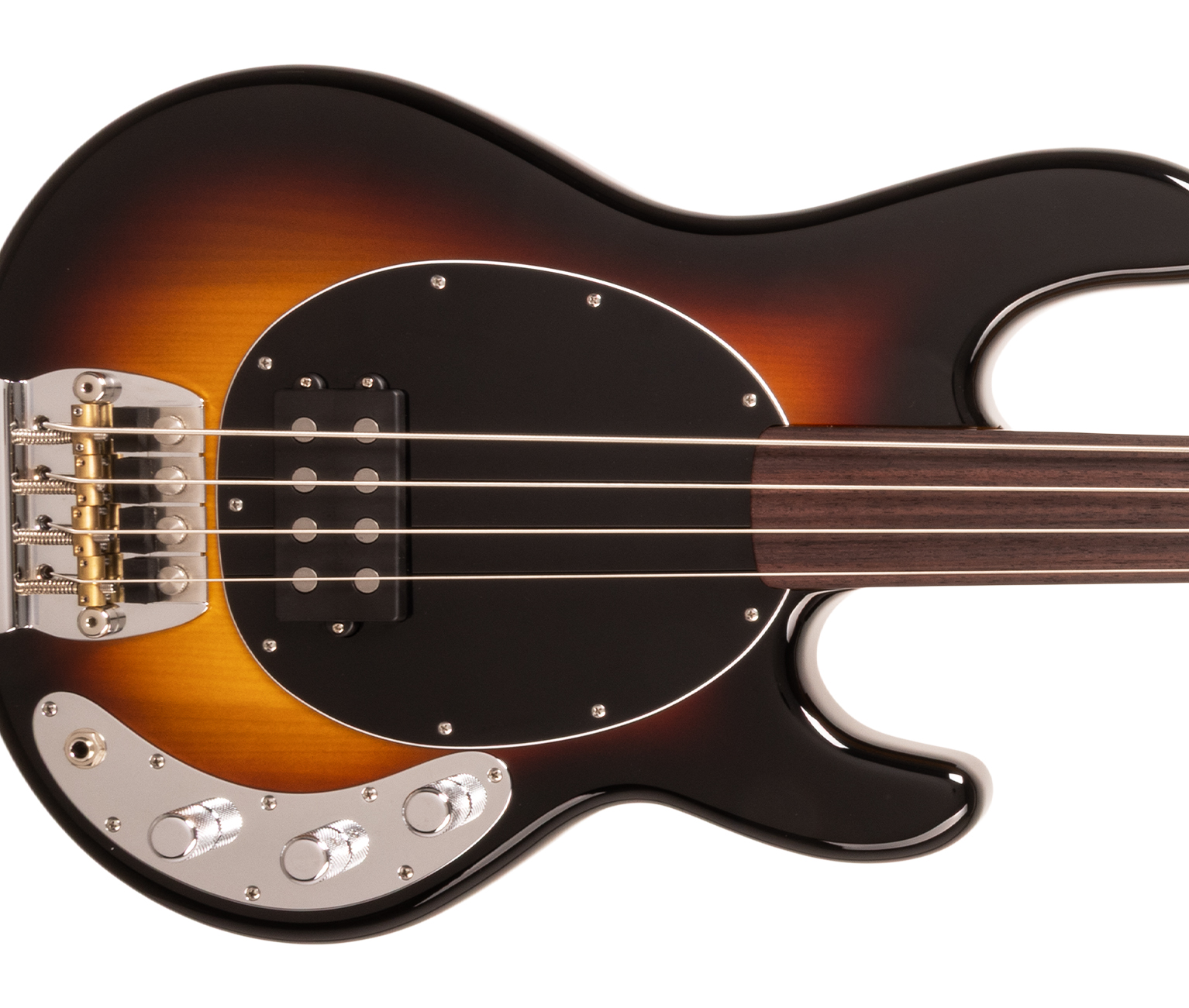

Il basso Pino Palladino Signature StingRay riproduce il timbro iconico e il feeling di uno dei bassisti più influenti di tutti i tempi. Ispirato allo StingRay fretless originale del 1979 di Pino, questo modello signature è disponibile sia in versione con tasti che fretless, entrambe progettate per offrire il suo timbro inconfondibile e un’eccellente suonabilità. Presenta un corpo in Pioppo con finitura ’79 Burst, un manico in Acero scuro con tastiera sottile in Palissandro e un esclusivo profilo del manico asimmetrico che riprende la forma dello strumento originale di Pino. Il pickup custom, realizzato secondo le specifiche di fine anni ’70 con poli più corti, si abbina perfettamente al preamplificatore, calibrato per replicare il calore e il carattere del circuito invecchiato di Pino. Completano la dotazione le sellette in ottone, il capotasto GraphTech NuBone e le piastre del manico Artist Series. Il modello con tasti monta corde Pino Signature Smoothie Flats per un timbro caldo e profondo, mentre la versione fretless utilizza corde Ernie Ball Slinky Nickel Wound a scalatura custom per slide fluidi ed espressivi. Ogni basso è fornito con una custodia Mono Case che garantisce protezione e robustezza.

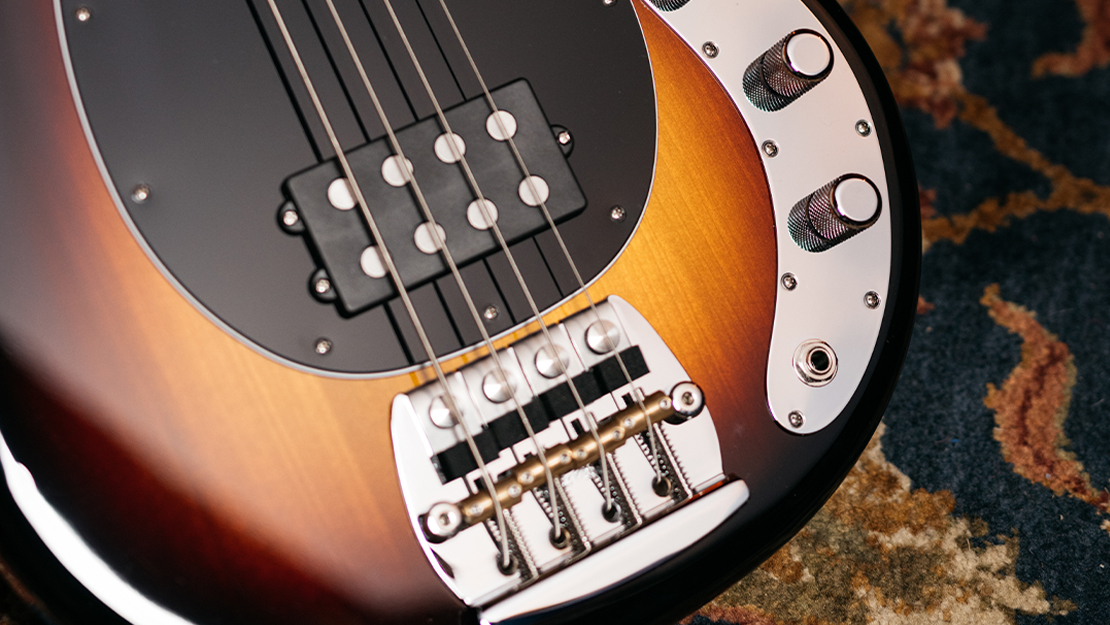

Custom humbucking pickup with 5/8th” alnico 5 magnets wound with original 42 gauge wire.
The original pre-EB StingRay bullet truss rod adjustment ensures proper neck action.

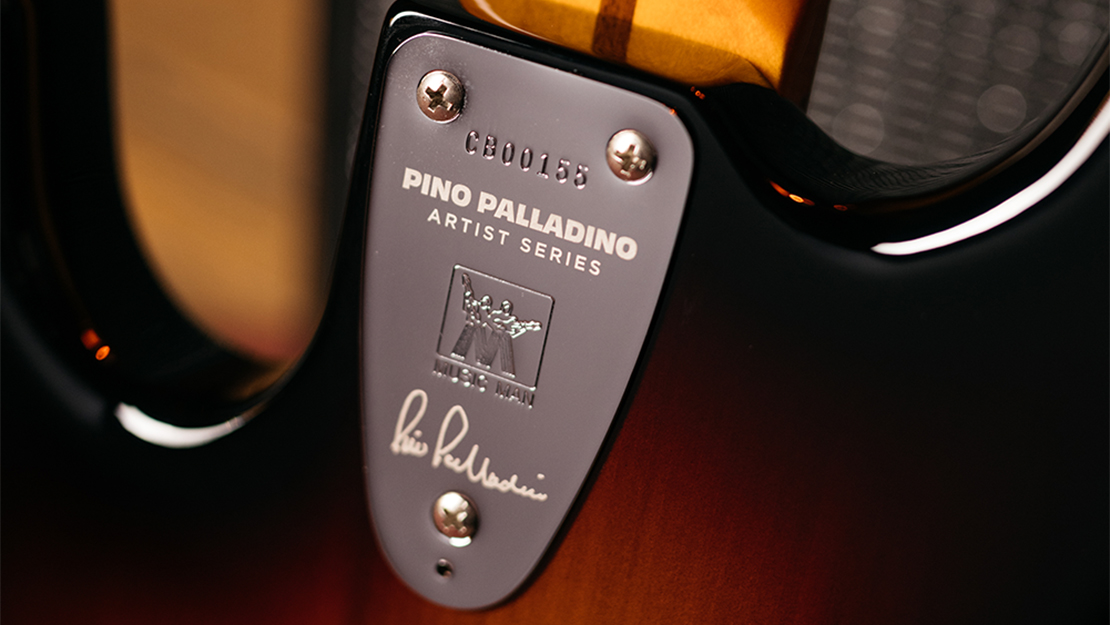

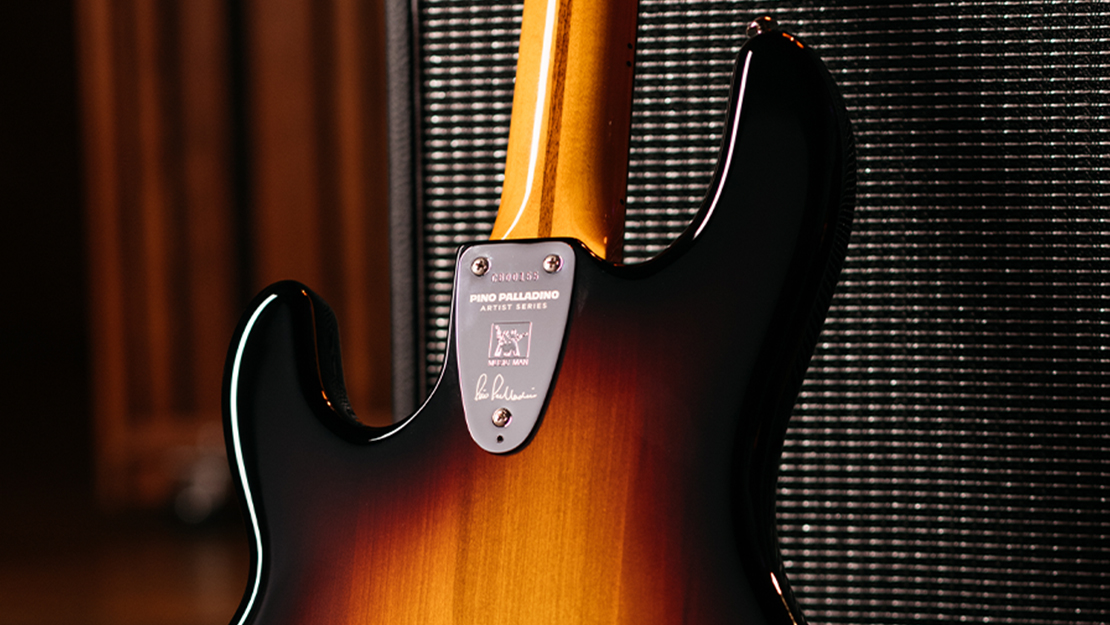

The Pino Palladino 3-bolt artist series chrome-plated neck plate includes a micro-tilt adjustment, which allows for neck angle adjustments without the need for shims. Firm neck and neck pocket tolerances ensure a tight fit with no shifting.
The back profile toward the bass side of the neck has a strong “V” shape. It softens to a rounder “C” profile near the treble side of the neck for a more accurate custom playing experience under the fingertips.

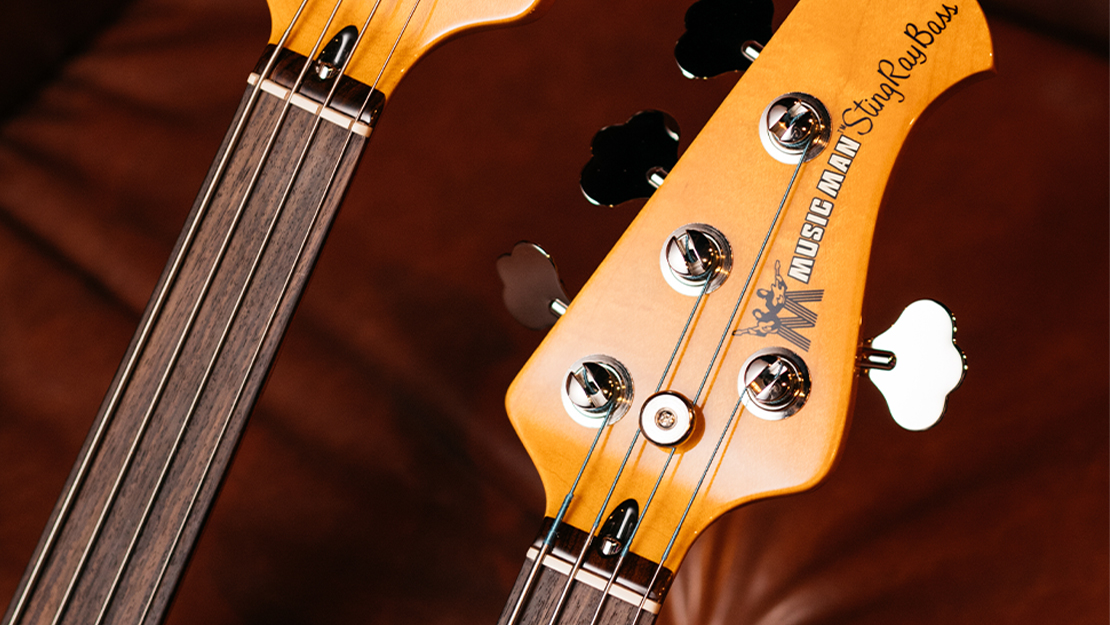

1.686" wide, the meticulously hand-shaped Graphtec Nubone nut duplicates Pino’s modification to enhance tone, volume, and harmonics.
Specifiche Tecniche | Pino Palladino StingRay |
---|---|
Modello | Pino Palladino StingRay |
Legno Body | Poplar |
Finitura Body | High Gloss Polyester |
Colori Body | 79 Burst |
Ponte | Pre-EB Geometry Music Man® Chrome Plated, Steel Bridge Plate with Brass Saddles and Stainless Steel Spring Mutes |
Battipenna | 3 ply Black/White/Black |
Lunghezza Scala | 34" |
Radius Manico | 7.5" |
Tasti | Nickel (Frets) - Unlined (Fretless) |
Larghezza Manico | 1.686" at Nut; 2.458" at Heel |
Legno Manico | Maple |
Tastiera | Rosewood |
Indicatori di posizione | White Dot (Frets) - N/A (Fretless) |
Finiture Manico | Polyester |
Colori Manico | Dark Orange Tint |
Meccaniche | Schaller Bass |
Truss Rod | Traditional Bullet Nut at Headstock, Walnut Skunk Stripe on back of neck |
Attacco Manico | 3-Bolt, Pino Palladino Signature Neck Plate |
Controlli | 2-band active preamp, 25k Volume; 500k Treble and 100k Bass |
Pickup | Late 70's voiced Music Man humbucker with pole pieces that sit flush |
Corde | 36w, 55w, 65w, 90w Custom Gauge Ernie Ball Nickelwound (Fretless) - 38w-54w-68w-98w Extra Light Pino Palladino Smoothie Flats (Fretted) |
id => 129
iid => 129
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2025-07-03 10:12:18
updated_at => 2025-07-03 10:12:18
Specifiche Tecniche | Pino Palladino StingRay | |
---|---|---|
Model | Pino Palladino StingRay | |
Order | 0 | |
Size | ||
Body Wood | Poplar | |
Body Finish | High Gloss Polyester | |
Body Colors | 79 Burst | |
Body Bindings | ||
Bridge | Pre-EB Geometry Music Man® Chrome Plated, Steel Bridge Plate with Brass Saddles and Stainless Steel Spring Mutes | |
Pickguard | 3 ply Black/White/Black | |
Scale Length | 34" | |
Neck Radius | 7.5" | |
Headstock Size | ||
Frets | Nickel (Frets) - Unlined (Fretless) | |
Neck Width | 1.686" at Nut; 2.458" at Heel | |
Neck Wood | Maple | |
Fingerboard | Rosewood | |
Fret Markers | White Dot (Frets) - N/A (Fretless) | |
Neck Finish | Polyester | |
Neck Colors | Dark Orange Tint | |
Neck Binding | ||
Tuning Machines | Schaller Bass | |
Truss Rod | Traditional Bullet Nut at Headstock, Walnut Skunk Stripe on back of neck | |
Neck Attachment | 3-Bolt, Pino Palladino Signature Neck Plate | |
Electronic Shielding | ||
Controls | 2-band active preamp, 25k Volume; 500k Treble and 100k Bass | |
Switching | ||
Pickups | Late 70's voiced Music Man humbucker with pole pieces that sit flush | |
Left Handed | ||
Strings | 36w, 55w, 65w, 90w Custom Gauge Ernie Ball Nickelwound (Fretless) - 38w-54w-68w-98w Extra Light Pino Palladino Smoothie Flats (Fretted) |
